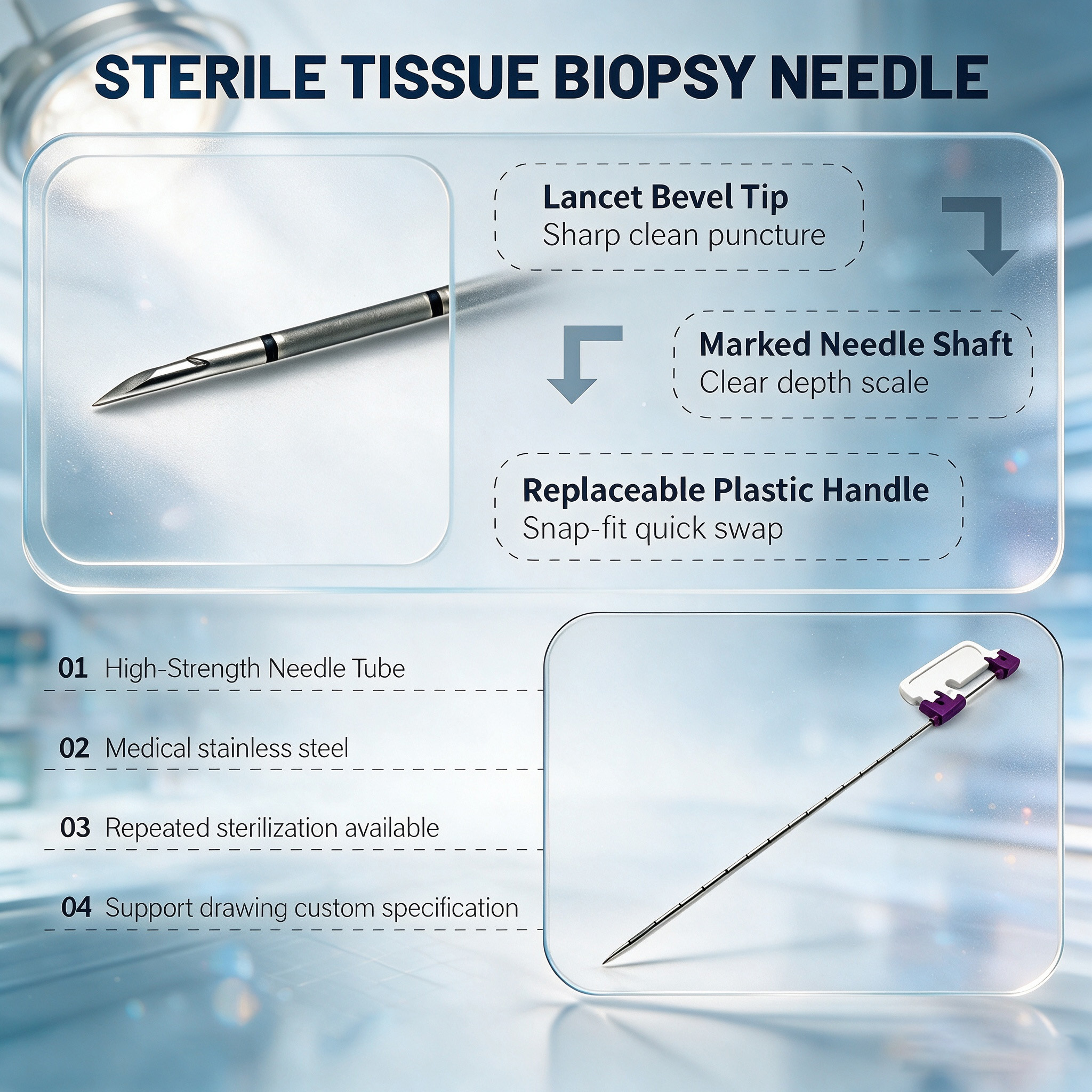

Customized Replaceable Core Biopsy Needle for Medical Procedure

MOQ : 10pcs

Delivery Time : 5-20days Or According To Quantity

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Application : Fine Needle Aspiration / Biopsy / Drainage

Model Number : OEM

Price : 1-20USD

Certification : ISO13485

Place of Origin : CN

Supply Ability : 100000pcs/ month

Material : Medical Grade Stainless Steel

Brand Name : SHOMEA

Packaging Details : Polybag, Carton, Wooden case or According to your request

Contact Now

Customized Replaceable Core Biopsy Needle for Medical Procedure

Products Name

Customized Replaceable Core Biopsy Needle for Medical Procedure
Material Medical Grade Stainless Steel
Needle Type Fine Puncture Needle
Needle Tip Beveled Tip
Gauge 18G–25G (Custom Available)
Length 90–250 mm (Custom Available)
Connection Luer Hub
OEM/ODM Available
LOGO Can be customized according to your drawing
Samples Usually provide 5-10pcs samples for testing before mass production
Delivery Time Usually 5-25days or according to quantity


Customized Replaceable Core Biopsy Needle for Medical Procedure


Product Advantages:

  • Replaceable needle core design reduces overall use cost, only replace needle instead of whole instrument.
  • Clear laser depth marks support precise depth control during tissue sampling operation.
  • Sharp optimized biopsy cutting tip lowers penetration resistance and minimizes patient tissue trauma.
  • Electropolished stainless steel cannula ensures smooth inner and outer surface, avoiding tissue tearing.
  • Support custom gauge, length and tip shape, compatible with matched biopsy handle assemblies.
FAQ:

Q1: What stainless steel materials are available for this replaceable biopsy needle?
A1: Medical grade 304 and 316 stainless steel are standard materials. Material test certificates can be provided for medical device registration. Special alloy materials are acceptable upon customer requirements.

Q2: What dimensional tolerance can you guarantee for the biopsy needle cannula?
A2: Key dimensions including outer diameter, inner diameter and wall thickness keep precision tolerance up to ±0.02mm. Depth mark position and tip geometry are controlled according to customer drawing specifications.

Q3: Can you complete all secondary processing procedures in-house?
A3: Yes. Laser depth marking, biopsy tip cutting, tube finishing and surface polishing are all finished internally, which avoids quality risks from external outsourcing.

Q4: Are these replaceable biopsy needles supplied as sterile finished products?
A4: We supply non-sterile finished components only, without sterilization service. Customers can perform EO or gamma sterilization following their own medical production process.

Q5: What about sample and mass production lead time, and available documents?
A5: Custom sample lead time is 7-12 working days, mass production lead time will be confirmed after drawing approval. Dimension inspection reports and material certificates can be provided on request.
